Our Products

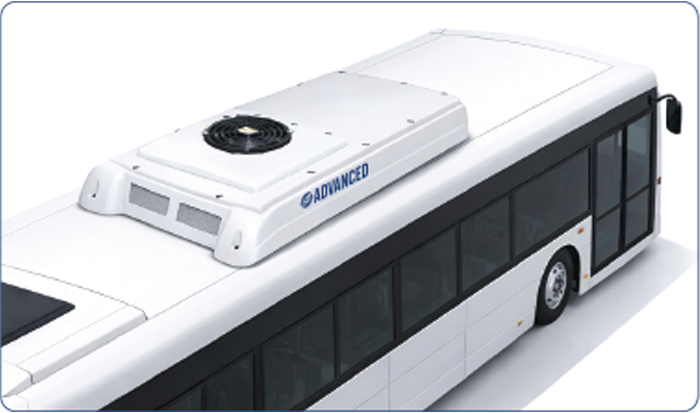

Model-AAS-06
High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
TECHNICAL SPECIFICATIONS
| S.No. | Specification | Details |
|---|---|---|
| 1 | Air Conditioned Area (Mtr) | 4 |
| 2 | Seating Capacity | 6–10 |
| 3 | Cooling Capacity (KW) | 6–8 |
| 4 | Compressor Capacity (cc) | 163 |
| 5 | Compressor Make | Sanden SD7H15/QP |
| 6 | Alternator Capacity (Amps) | N/A |
| 7 | Alternator Make/Model | N/A |
| 8 | Refrigerant | 134a |
| 9 | Supply Voltage | 12V |
| 10 | Current Consumption (Amp) | 27 |
| 11 | Evaporator Coil | Internally Grooved Copper Tube with Hydrophilic Aluminium fins |
| 12 | Condenser Coil | MFC – Aluminium |
| 13 | No of Fans and Blower | Fan – 01 Nos, Blower – 01 Nos |
| 14 | Evaporator Air Flow (m3 h) | 1000 |
| 15 | Condenser Air Flow (m3 h) | 2000 |
| 16 | Dimensions (LxWxH) | 1440 x 1000 x 220 |
