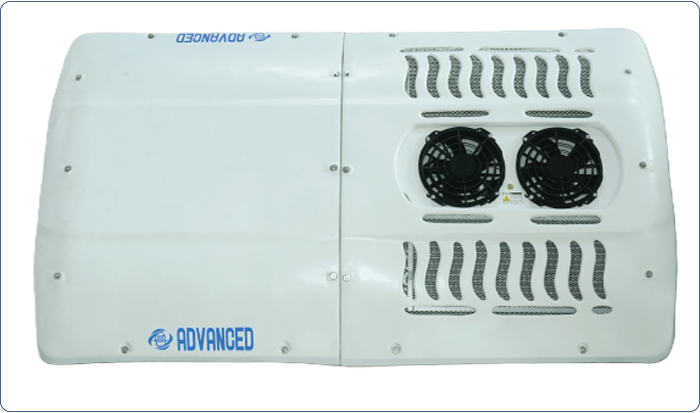

Model-AAS-18
High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
Our Products
Model-AAS-18
High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
TECHNICAL SPECIFICATIONS
| S.No. | Specification | Details |
|---|---|---|
| 1 | Air Conditioned Area (Mtr) | 7 |
| 2 | Seating Capacity | 30–35 |
| 3 | Cooling Capacity (KW) | 18 KW |
| 4 | Compressor Capacity (cc) | 313 |
| 5 | Compressor Make | Valeo-TM-31/GP |
| 6 | Alternator Capacity (Amps) | 12/150A |
| 7 | Alternator Make/Model | Lucas/Bosch |
| 8 | Refrigerant | 134a |
| 9 | Supply Voltage | 12V/24V |
| 10 | Current Consumption (Amp) | 75A (12V) |
| 11 | Evaporator Coil | Internally Grooved Copper Tube with Hydrophilic Aluminum Fins |
| 12 | Condenser Coil | Internally Grooved Copper Tube |
| 13 | No of Fans and Blower | Fan – 02 Nos, Blower – 04 Nos |
| 14 | Evaporator Air Flow (m3 h) | 4000 |
| 15 | Condenser Air Flow (m3 h) | 4000 |
| 16 | Dimensions (LxWxH) | 2550 x 1530 x 220 |
