Model-AAS-12

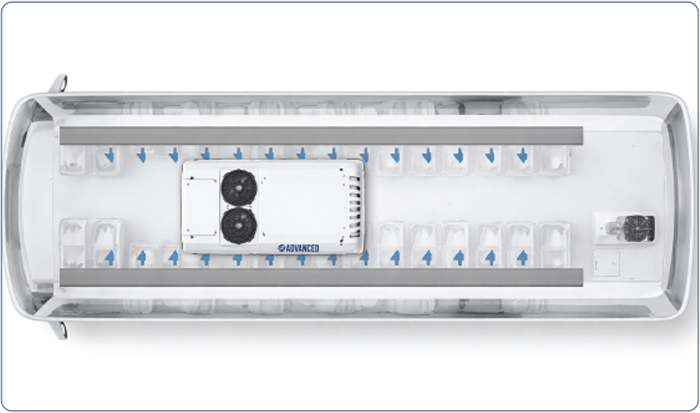

High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
TECHNICAL SPECIFICATIONS
| S.No. | Specification | Details |
|---|---|---|
| 1 | Air Conditioned Area (Mtr) | 5 |
| 2 | Seating Capacity | 17–21 |
| 3 | Cooling Capacity (KW) | 10–12 |
| 4 | Compressor Capacity (cc) | 163 |
| 5 | Compressor Make | Sanden SD7H15/QP |
| 6 | Alternator Capacity (Amps) | N/A |
| 7 | Alternator Make/Model | N/A |
| 8 | Refrigerant | 134a |
| 9 | Supply Voltage | 12V |
| 10 | Current Consumption (Amp) | 45 |
| 11 | Evaporator Coil | Internally Grooved Cooper Tube with Hydrophilic Aluminium fins |
| 12 | Condenser Coil | MFC-Aluminium |
| 13 | No of Fans and Blower | Fan-02 Nos, Blower-02 Nos |
| 14 | Evaporator Air Flow (m3 h) | 2000 |
| 15 | Condenser Air Flow (m3 h) | 4000 |
| 16 | Dimensions (LxWxH) | 1920×1135×220 |
