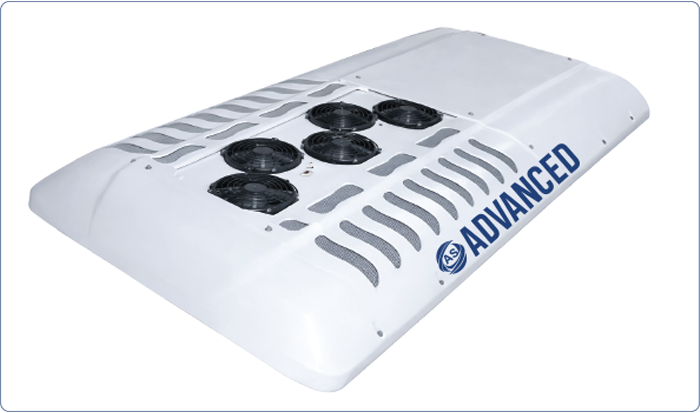

Model-AAS-28

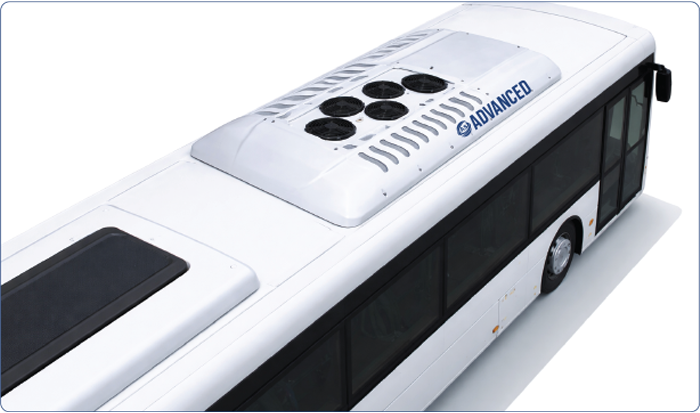

High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
Our Products
Model-AAS-28
High-performance roof-mounted units engineered to deliver powerful cooling, uniform airflow, and reliable operation for buses operating in demanding conditions.
TECHNICAL SPECIFICATIONS
| S.No. | Specification | Details |
|---|---|---|
| 1 | Air Conditioned Area (Mtr) | 12 |
| 2 | Seating Capacity | 50 |
| 3 | Cooling Capacity (KW) | 28~30 |
| 4 | Compressor Capacity (cc) | 650 |
| 5 | Compressor Make | Bitzer/Bock |
| 6 | Alternator Capacity (Amps) | 24/150A |
| 7 | Alternator Make/Model | Prestolite/Bosch |
| 8 | Refrigerant | |
| 9 | Supply Voltage | 24V |
| 10 | Current Consumption (Amp) | 110 |
| 11 | Evaporator Coil | Internally Grooved Cooper Tube with Hydrophilic aluminium fins |
| 12 | Condenser Coil | Internally Grooved Copper Tube |
| 13 | No of Fans and Blower | Fan-05Nos, Blower-08 Nos |
| 14 | Evaporator Air Flow (m3 h) | 8000 |
| 15 | Condenser Air Flow (m3 h) | 10000 |
| 16 | Dimensions (LxWxH) | 4510×1855×200 |
